Fabtech 01-06 GM C/K2500HD 8in Perf Sys w/Dlss Shks - K1015DL

Part Number: FABK1015DL

Your Price:
$5,640.83 $5,076.73
(You save $564.10)
Write a Review
Availability:
Special order
MPN:
K1015DL
Photo - Primary

Product Information

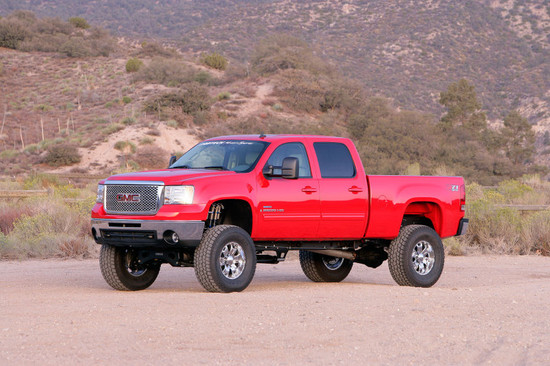

The 8in Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4in thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37in tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2in add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

This Part Fits:

YearMakeModelSubmodel
2001-2005ChevroletSilverado 2500 HDBase
2001-2006ChevroletSilverado 2500 HDLS
2001-2006ChevroletSilverado 2500 HDLT
2003-2006ChevroletSilverado 2500 HDWT
2001-2005ChevroletSilverado 3500Base
2001-2006ChevroletSilverado 3500LS
2001-2006ChevroletSilverado 3500LT
2004,2006ChevroletSilverado 3500WT
2002-2005GMCSierra 2500 HDBase
2001-2002,2006GMCSierra 2500 HDSL
2001-2006GMCSierra 2500 HDSLE
2001-2006GMCSierra 2500 HDSLT
2003-2006GMCSierra 2500 HDWT
2002-2005GMCSierra 3500Base
2001-2002,2006GMCSierra 3500SL
2001-2006GMCSierra 3500SLE
2001-2006GMCSierra 3500SLT
2004-2006GMCSierra 3500WT
